8gt FHU Acacia Box Sorter

BSfirst-item-box-sortersBS005Updated Jun 08, 2026Archived May 29, 2026

✅Functional⭐Recommended

Authors:Andrews54757TisUnfortunate金合欢酱喵~ (acaciachan)

Endorsed by:Andrews54757

←→

1 / 3

View

Sorts boxes by their first item's type at hopper speedDefinition: Refers to the speed at which items are processed in a hopper (1 item every 8gt, or 2.5 items per second). Usually written as an integer (e.g. '3x hopper speed'). ## Common hopperspeeds 1x: 9000 ite.... Works by taking the first item out of the box, and recombining the box with the item in the assigned sliceDefinition: A repeatable ( Preferably tileable ) component within a system.. Design is similar to IBS0021wABt 8gt Fully Hopperlocked Box Sorter but is fully hopper unlocked for a smaller footprint.

Features

• Fully hopper unlocked
• 1wABtDefinition: An extension of n-Wide tileable, but where a solution has been provided by the author on how to put 2 Slices(Slice) of the same system next to each other, by moving/editing some components within t..., small slices (6x7)
• Hopperspeed throughput
• Lag optimized: pistons do not fire unless they need to
• Overflow protection & no buffered boxes
• Multi shulker box sorting support (if full boxes only)
• Tiny keygenDefinition: Usually part of a Box Sorter, a keygen is a contraption that takes one item out of a box, breaks it and sends the item and sends one through one hopper or Dropperline and the other through another ..., only 1 block overhang

Notes

• Multi shulker box sorting support applies only if full boxes are used.

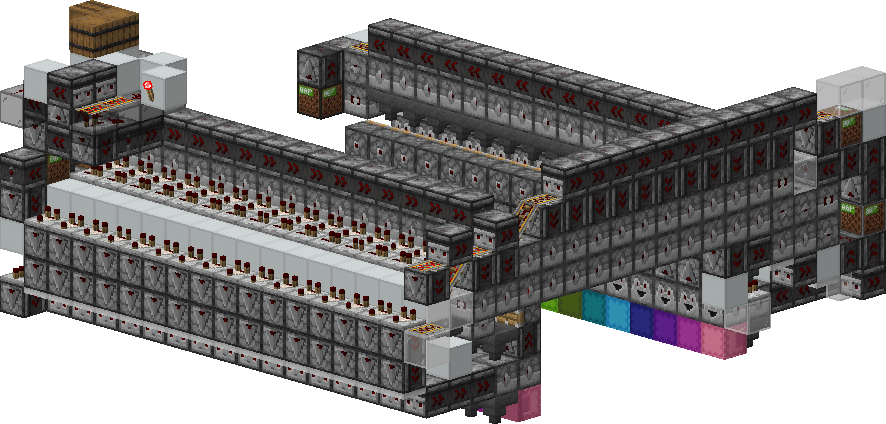

• Includes schematicDefinition: Typically a .litematic file or a .schematic file in older versions or with different mods than litematica. It is a blueprint that tells you how to build redstone builds, tells you what materials yo... with 1 wide counterclockwise u-turn
